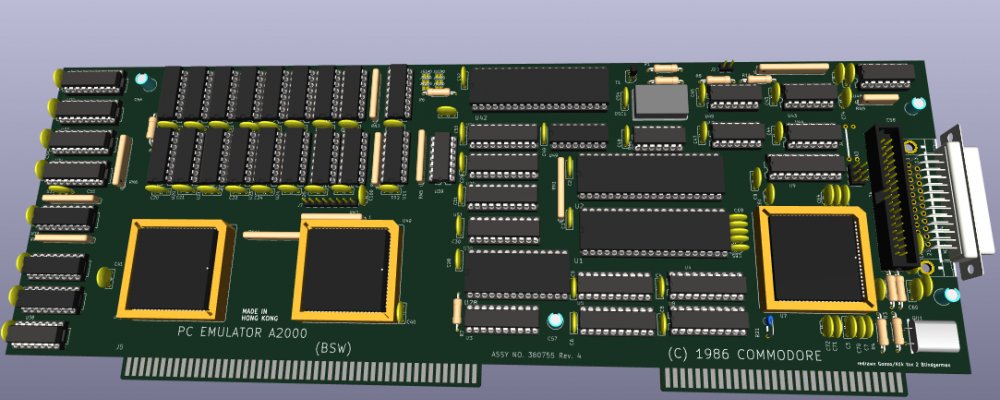

A2088XT Schematic and PALs
Pal Matrix je nach Revision
| IC | Original Type PAL |
Replacement Type GAL |
Name | Rev 2 | Rev 3 | Rev 4 | Rev 5 | Rev A |
|---|---|---|---|---|---|---|---|---|
| U29 | 16L8 | 16V8 | ramdecode | - | 380783-01 | 380783-01 | 380783-01 | 380783-01 |
| U39 | 16L8 | 16V8 | Autoconfig | 380783-01 | - | - | - | - |
| U50 | 16L8 | 16V8 | floppydecode | - | 380784-01 | 380784-01 | 380784-01 | 380784-01 |
Last Update: 02.04.2024
